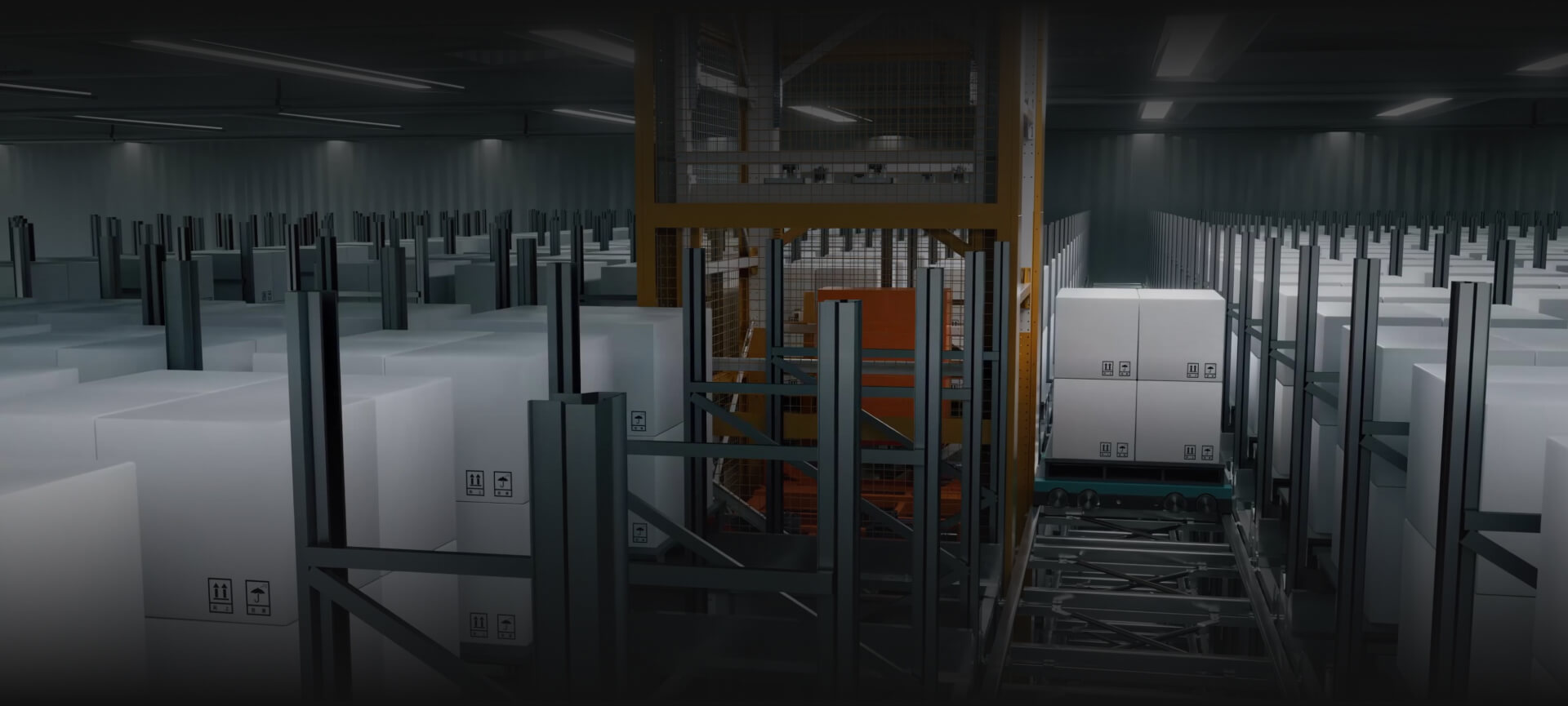

Vertical Transfer. Precise Positioning.
Seamless Coordination. Built-in Reliability.

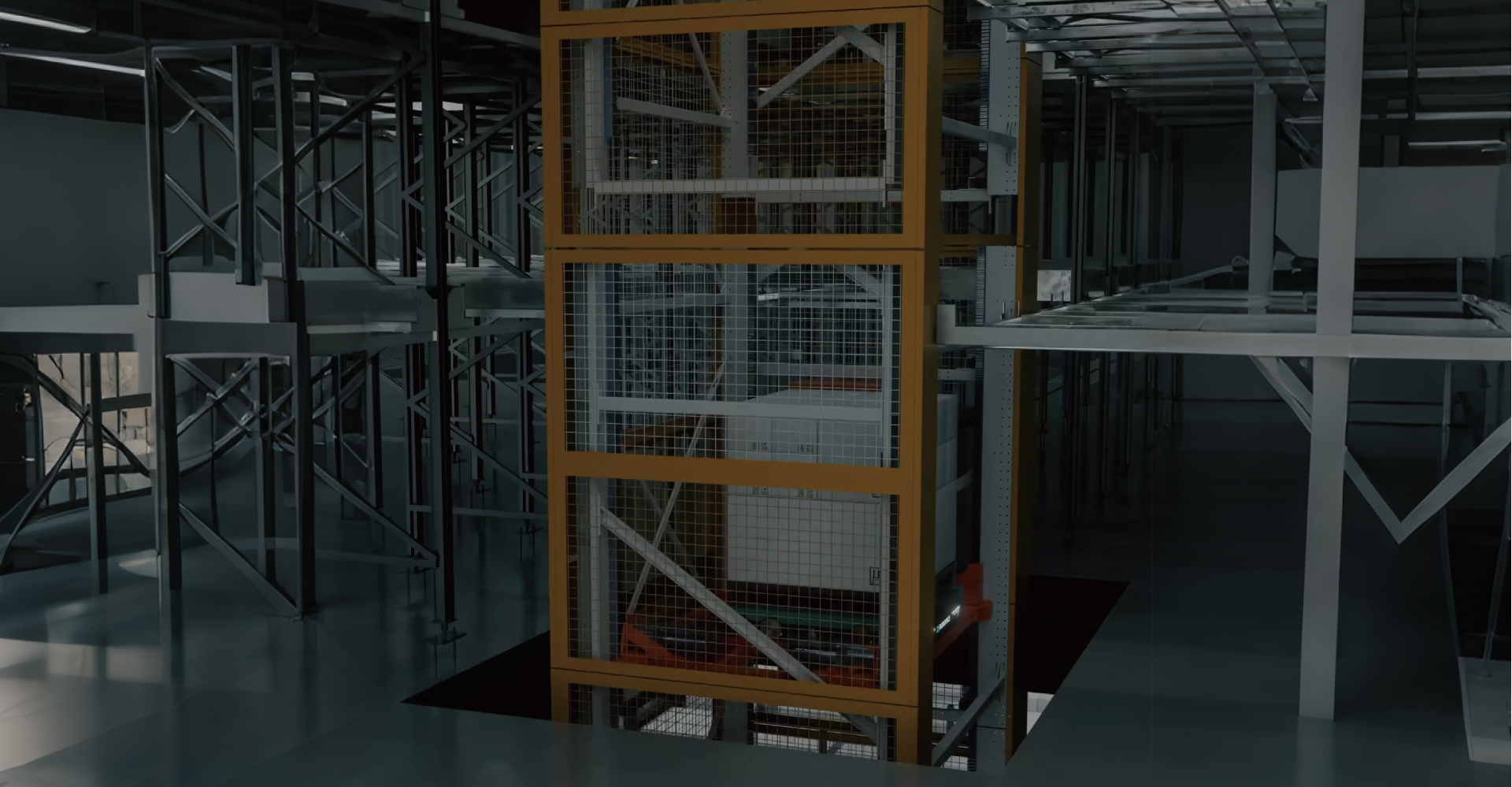

Connecting every level, every aisle, and every workflow, the Lift serves as the critical link within high-density automated storage systems.From stable vertical transfer to accurate shuttle handoff, every movement is engineered for efficiency, safety, and continuous operation.Every lift is built for reliability. Every transfer is designed for precision. Keeping materials moving. Keeping warehouses connected.
Connect with a ZS Robotics expert and get a tailored warehouse automation plan at no cost.
From solution consulting and ROI analysis to site visits and live demonstrations, we're here to help you build a safer, easier, and more efficient warehouse.
SAFETY FIRST
Safety is at the heart of everything we do. From product design and system architecture to daily operation and long-term service, reliability guides every decision we make. Through continuous innovation, rigorous engineering, and relentless attention to detail, we strive to create warehouse automation solutions that are safer, simpler, and more dependable. Because lasting trust is built on a foundation of safety.
Industry-First Lift Interaction Anti-Fall Function
Pure mechanical bidirectional stopper
Cross-equipment interlocking mechanism
Mechanical anti-fall protection even if sensors fail
No electrical control required for fail-safe operation
Emergency Stop & Protective Net
Immediate power cut in emergency
Protects personnel and equipment
Supports manual and automated stop
Integrates with touch control interface
Multi-Layer Safety Protection
Servo motor overload protection
Dual mechanical and electrical limit detection
Modular column design for safe transport and on-site installation
Ensures reliable operation under high-frequency usage
EASY ALWAYS
Technology creates value when it is easy to use. At ZS Robotics, we simplify complexity through thoughtful design, intuitive operation, and efficient deployment. From implementation and maintenance to everyday warehouse management, every experience is built around ease, efficiency, and accessibility. By making automation simpler to adopt and easier to manage, we help businesses focus on growth while technology works seamlessly in the background.

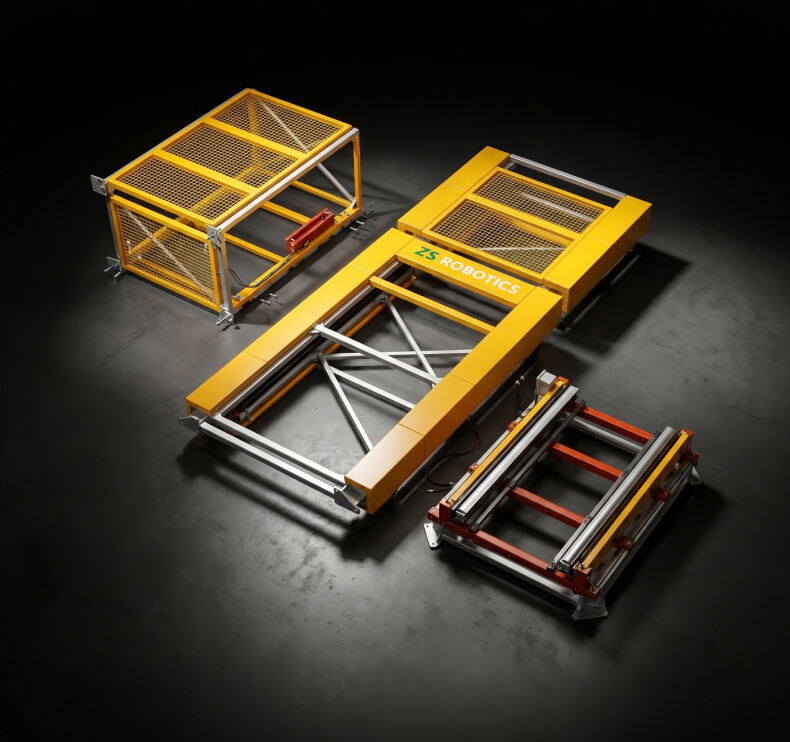

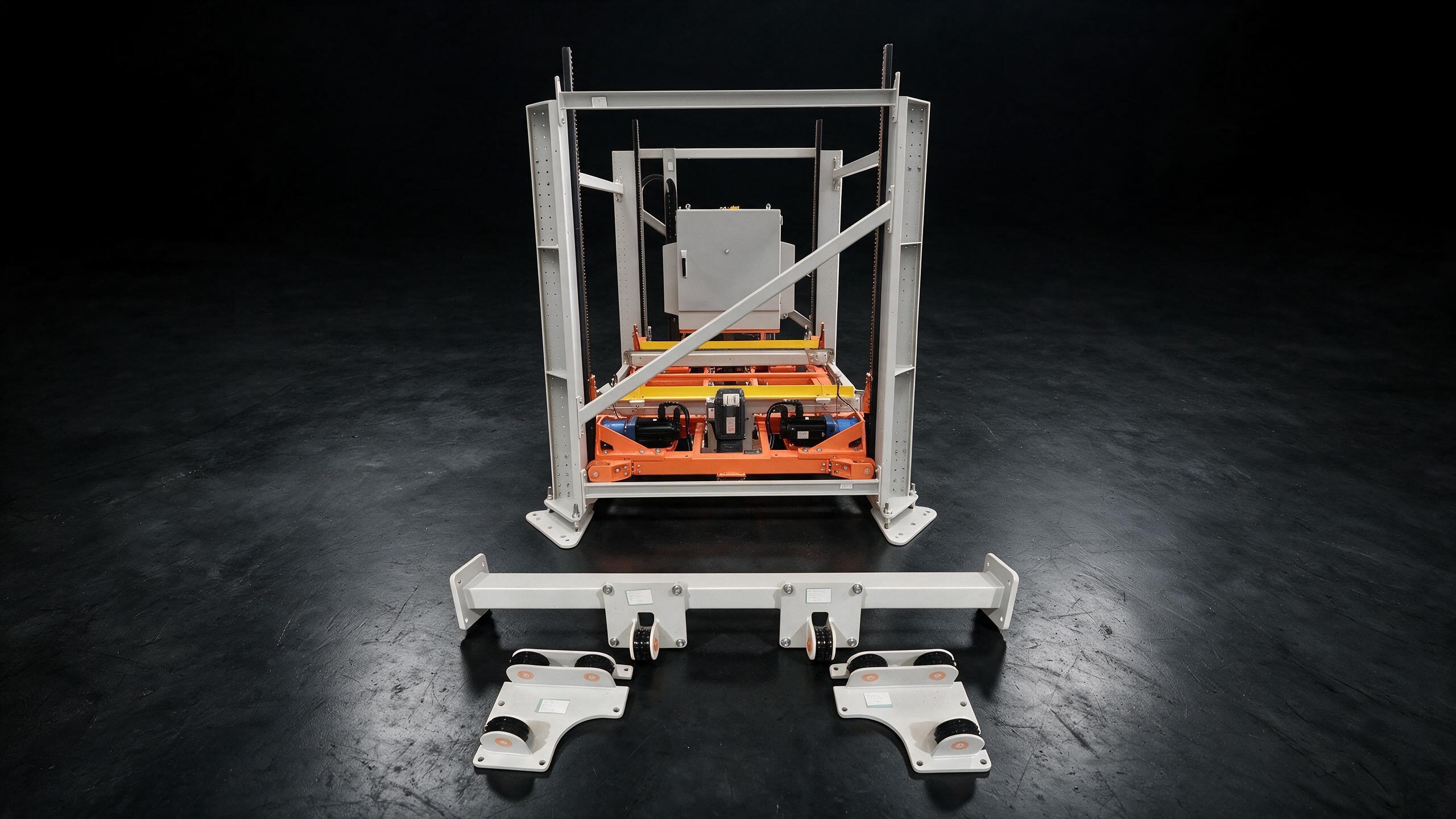

Modular Installation Design
Intelligent Control Interface
Efficient Maintenance
ZS Robotics Lift Comparison

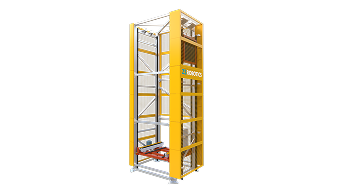

Standard Lift
Rack & Pinion Lifting System
Servo Motor Drive
≥36 m/min
Full Load Lifting Speed
≥36 m/min
No Load Lifting Speed
≥12 m/min
Conveying Speed
1500 kg + Shuttle
Max. Handling Weight
1300 × 1100 × 1600 mm
Max. Unit Dimensions
±2 mm
Positioning Accuracy
Chain Drive
Horizontal Drive
PLC (Xinje / Inovance)
Control Unit
Modular Design
Easy Installation & Maintenance
-25°C ~ 50°C
Operating Temperature

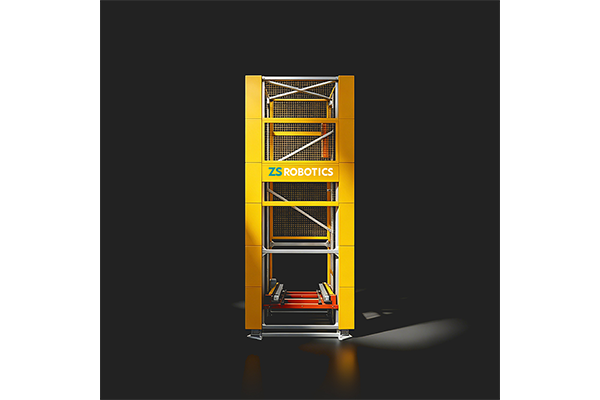

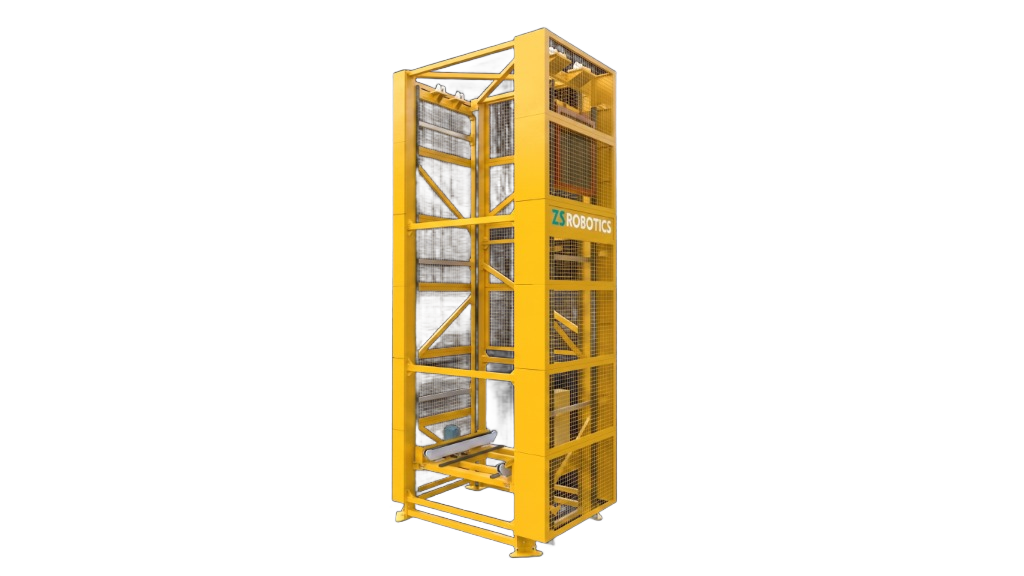

High-Speed Lift
Rack & Pinion Lifting System
Servo Motor Drive
1.0 m/s
Full Load Lifting Speed
1.0 m/s
No Load Lifting Speed
≥12 m/min
Conveying Speed
-
Max. Handling Weight
-
Max. Unit Dimensions
±2 mm
Positioning Accuracy
Chain Drive
Horizontal Drive
PLC (Xinje / Inovance)
Control Unit
Modular Design
Easy Installation & Maintenance
-25°C ~ 50°C
Operating Temperature

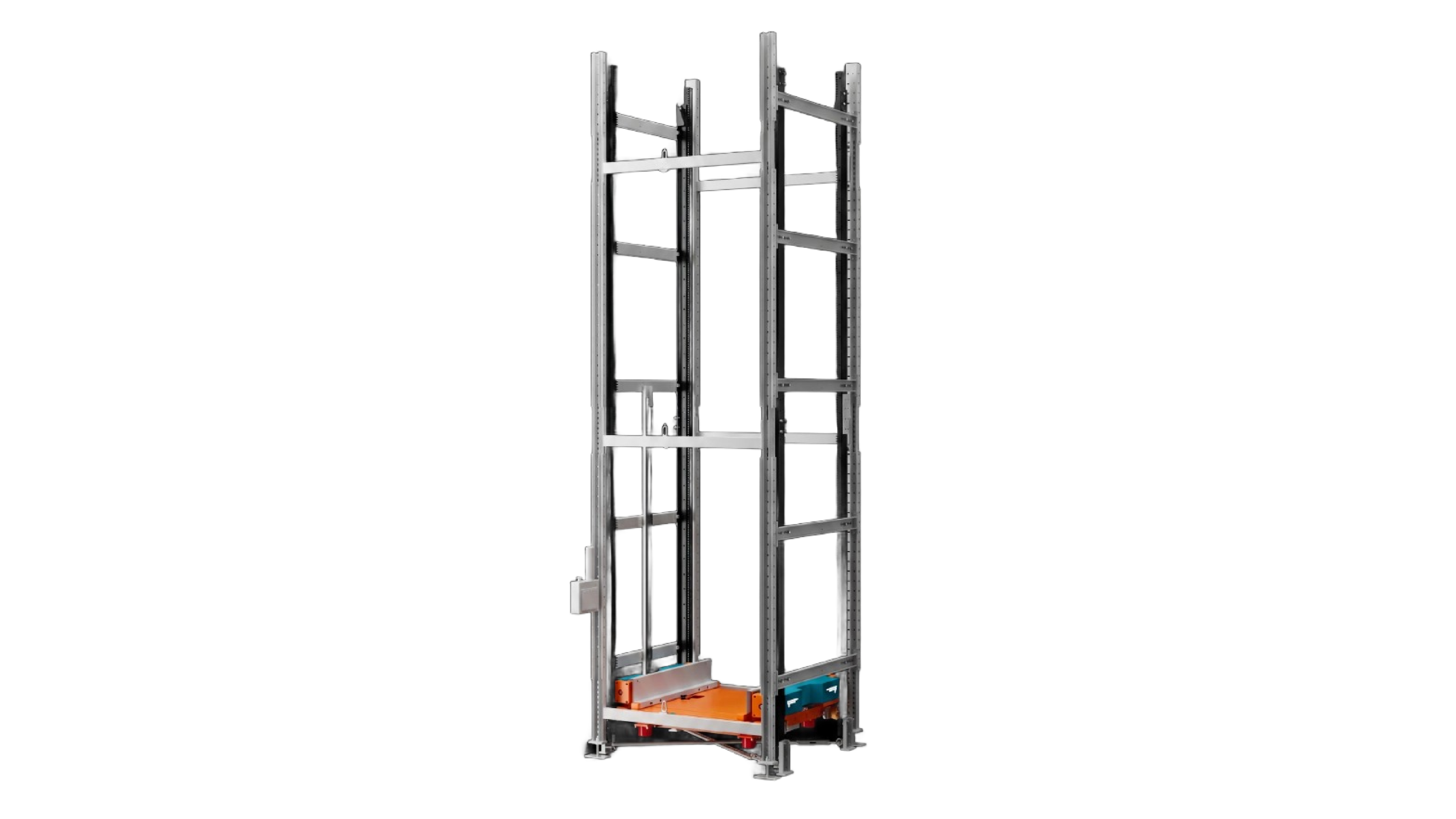

Single-Position Lift
Rack & Pinion Lifting System
Servo Motor Drive
≥36 m/min
Full Load Lifting Speed
≥36 m/min
No Load Lifting Speed
≥12 m/min
Conveying Speed
1000 kg + Shuttle
Max. Handling Weight
-
Max. Unit Dimensions
±2 mm
Positioning Accuracy
Chain Drive
Horizontal Drive
PLC
Control Unit
Modular Design
Easy Installation & Maintenance
-25°C ~ 50°C
Operating Temperature
High-Speed Lift
